PM 磁芯

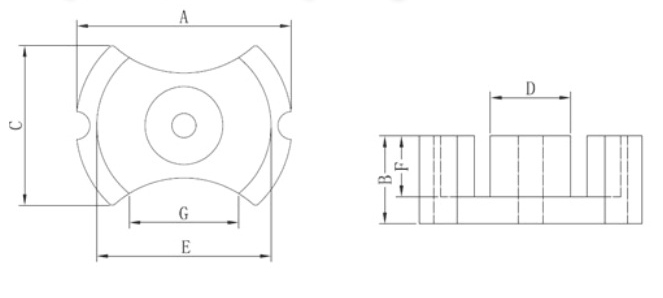

型號Type尺寸Dimension/單位mm備注ABC(Ref.)DEFGPM5049.15±0.8519.4±0.1536.619.7±0.339.65±0.6513.4±0.323.4minGPM6261.3±0.824.8±0.247±0.325.0±0.349±0.617.3±0.229.5±0.6GPM8787.00±2.5035.0±0.4067.0±1.531.0±0.766.5MIN24.2±0.439.4minGType型號有效參數(shù)重量gA
在線詢價
| 型號 Type | 尺寸 Dimension/單位mm | 備注 | ||||||
| A | B | C (Ref.) | D | E | F | G | ||
| PM50 | 49.15±0.85 | 19.4±0.15 | 36.6 | 19.7±0.3 | 39.65±0.65 | 13.4±0.3 | 23.4 min | G |
| PM62 | 61.3±0.8 | 24.8±0.2 | 47±0.3 | 25.0±0.3 | 49±0.6 | 17.3±0.2 | 29.5±0.6 | G |
| PM87 | 87.00±2.50 | 35.0±0.40 | 67.0±1.5 | 31.0±0.7 | 66.5 MIN | 24.2±0.4 | 39.4 min | G |
| Type 型號 | 有效參數(shù) | 重量 g | AL值 AL(nH/N2) | |||||
| C1(mm-1) | Le(mm) | Ae(m㎡) | Ve(mm3) | GP4 | ||||
| PM50 | 0.227 | 84 | 370 | 31000 | 168 | 7700±25% | ||
| PM87 | 0.161 | 146 | 910 | 133000 | 885 | 13000±25% | ||
