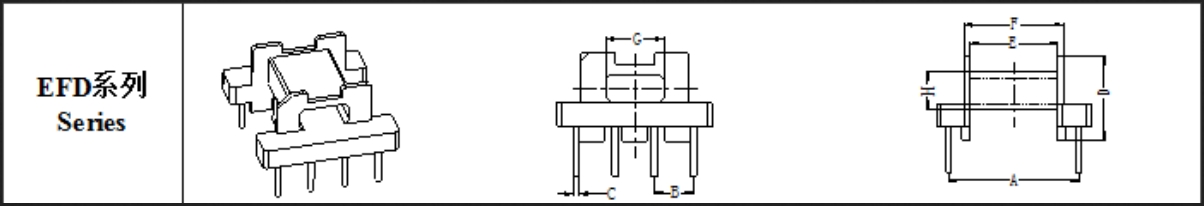

EFD EFT系列
序號型號品名ABC/ΦDEFGH完整尺寸B1B2G1G2H1H21EFD-1501EFD15-(4+4P)-1S143.80.68.39.3115.62.66.83.7點擊查看2EFD-1501-1EFD15-(4+4P)-1S143.80.699.3115.62.66.83.7點擊查看3EFD-1501-2EFD15-(4+4P)-1S143.80.68.59.5115.62.66.83.7點擊查看4EFD-1503EFD15-(4+4P)-1S153.80.61111135.94.96.95.9點擊查看5EFD-
在線詢價
| 序號 | 型 號 | 品 名 | A | B | C/Φ | D | E | F | G | H | 完整尺寸 | |||
| B1 | B2 | G1 | G2 | H1 | H2 | |||||||||
| 1 | EFD-1501 | EFD15-(4+4P)-1S | 14 | 3.8 | 0.6 | 8.3 | 9.3 | 11 | 5.6 | 2.6 | 6.8 | 3.7 | 點擊查看 | |
| 2 | EFD-1501-1 | EFD15-(4+4P)-1S | 14 | 3.8 | 0.6 | 9 | 9.3 | 11 | 5.6 | 2.6 | 6.8 | 3.7 | 點擊查看 | |
| 3 | EFD-1501-2 | EFD15-(4+4P)-1S | 14 | 3.8 | 0.6 | 8.5 | 9.5 | 11 | 5.6 | 2.6 | 6.8 | 3.7 | 點擊查看 | |
| 4 | EFD-1503 | EFD15-(4+4P)-1S | 15 | 3.8 | 0.6 | 11 | 11 | 13 | 5.9 | 4.9 | 6.9 | 5.9 | 點擊查看 | |
| 5 | EFD-1505 | EFD15-(4+4P)-1S | 13 | 2.5 | 3.8 | 0.6 | 9.5 | 9.1 | 11 | 5.6 | 2.6 | 6.7 | 3.8 | 點擊查看 |
| 6 | EFD-1625-3 | EFD16-(3+5P)-1S | 18 | 5 | 3 | 0.6 | 8.5 | 8 | 9.9 | 6.2 | 2.8 | 7.6 | 3.7 | 點擊查看 |
| 7 | EFD-2001 | EFD20-(4+4P)-1S | 18 | 5 | 0.6 | 10 | 14 | 15 | 9.2 | 4 | 11 | 5.2 | 點擊查看 | |
| 8 | EFD-2001-1 | EFD20-(4+4P)-1S | 18 | 5 | 0.6 | 11 | 14 | 15 | 9.2 | 4 | 11 | 5.2 | 點擊查看 | |
| 9 | EFD-2501 | EFD25-(5+5P)-1S | 23 | 5 | 0.7 | 13 | 17 | 18 | 12 | 5.5 | 13 | 6.8 | 點擊查看 | |
| 10 | EFD-2501-1 | EFD25-(5+5P)-1S | 23 | 5 | 0.7 | 14 | 17 | 18 | 12 | 5.5 | 13 | 6.8 | 點擊查看 | |
| 11 | EFD-2501-3 | EFD25-(5+5P)-1S | 23 | 5 | 0.7 | 12 | 17 | 18 | 12 | 5.5 | 13 | 6.8 | 點擊查看 | |
| 12 | EFD-2501-4 | EFD25-(5+5P)-1S | 23 | 5 | 0.7 | 15 | 17 | 18 | 12 | 5.5 | 13 | 6.8 | 點擊查看 | |
| 13 | EFD-2501-5 | EFD25-(5+5P)-1S | 23 | 5 | 0.7 | 14 | 17 | 18 | 12 | 5.5 | 13 | 6.8 | 點擊查看 | |
| 14 | EFD-2514 | EFD25-(5+6P)-1S | 31 | 4 | 5 | 0.7 | 14 | 17 | 18 | 12 | 5.5 | 13 | 6.8 | 點擊查看 |
| 15 | EFD-2533 | EFD25-(5+7P)-1S | 46 | 3.5 | 5 | 0.7 | 14 | 16 | 18 | 12 | 5.7 | 13 | 7.2 | 點擊查看 |
| 16 | EFD-3002 | EFD30-(6+6P)-1S | 28 | 5 | 0.8 | 16 | 21 | 22 | 15 | 5.2 | 16 | 6.5 | 點擊查看 | |
| 17 | EFD-3002-1 | EFD30-(6+6P)-1S | 28 | 5 | 14 | 21 | 22 | 15 | 5.2 | 16 | 6.5 | 點擊查看 | ||
